PUMP EQUIPMENT

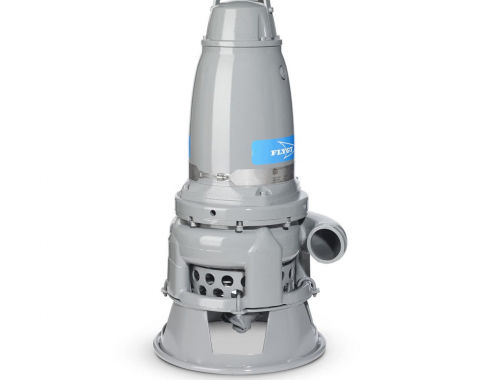

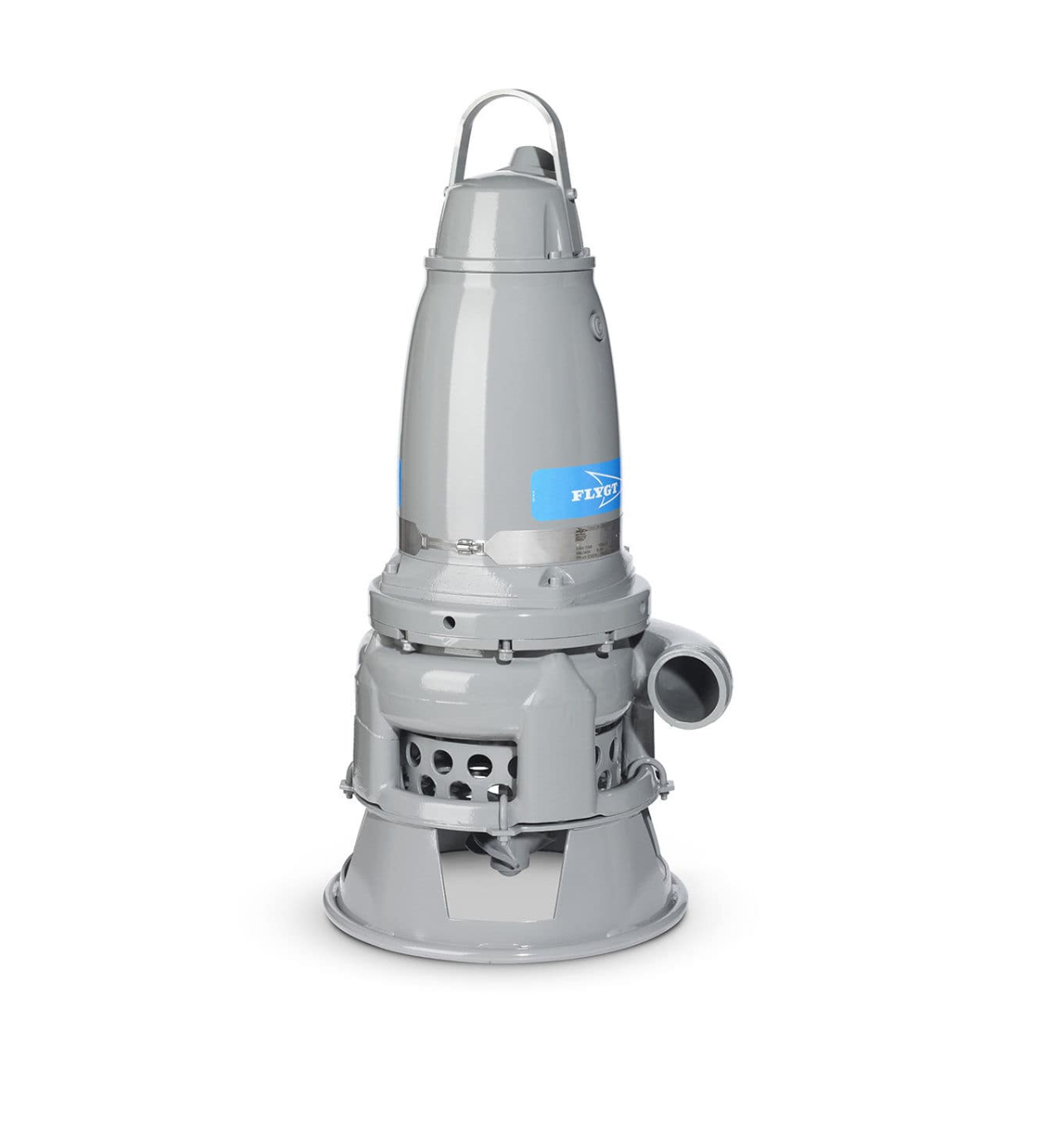

Rugged, reliable and economical, Flygt 5000 Series submersible slurry pumps handle the most abrasive solids suspended in liquids.

Designed for very high efficiency, low energy consumption, long wear life and easy maintenance, our Flygt 5000 series pumps are used in a wide variety of slurry applications.

Abrasion and corrosion resistant, these portable slurry pumps with a flat, compact design provide quiet, economical slurry operation.

• Drainage pump for heavy slurries, cast iron stator housing .
• Five basic models from 3.1 kW (4.2 hp ) up to 215 kW (292.3 hp) rated power.
• Weight of pumps from 122 kg. up to 2000 kg.

Application

• Mining and quarrying.
• Enrichment of minerals.
• Steel industry
• Construction industry.
• Wherever you need a reliable pump for handling media with high abrasive particles.

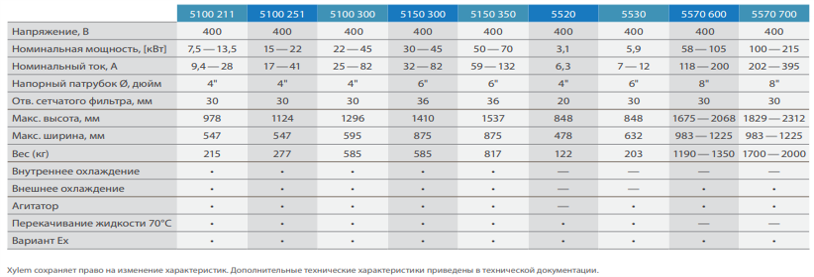

Characteristics

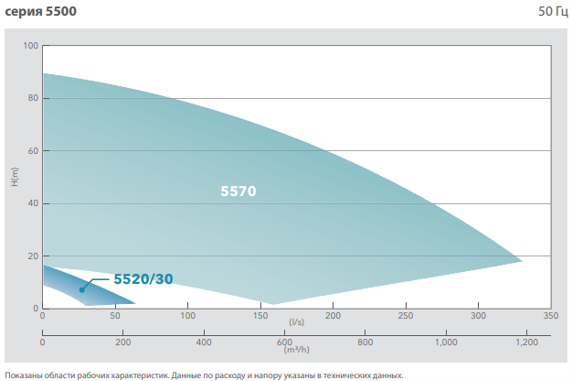

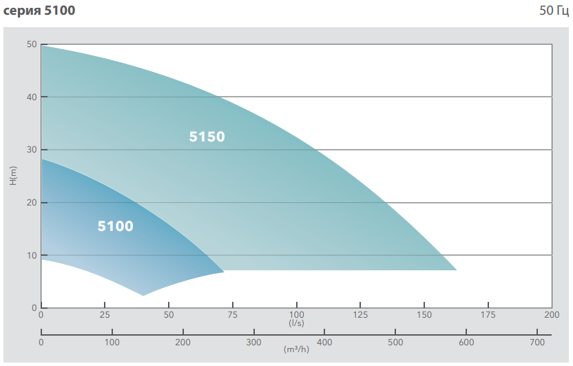

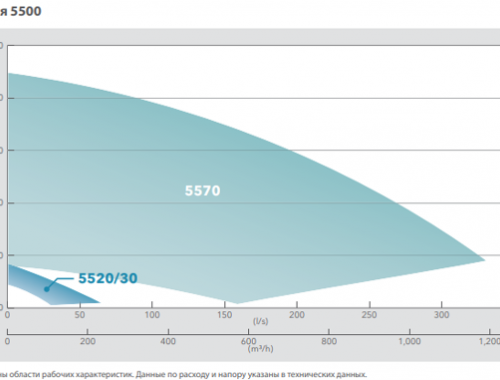

• Delivery: up to 320 l/s (1152 m3/h).
• Head: up to 88 m.
• Power supply: three-phase 50 and 60 Hz.
• Power: from 3.1 kW to 215 kW.
• Fluid temperature: up to 70 °C (optionally up to 70 °C)
• Maximum diving depth: 8 m.
• Flow section: 36-60 mm.
• Type of hydraulics: H (Channel impeller made of wear-resistant high-chromium cast iron)
