Our production

PUMP EQUIPMENT

Sewer pumps

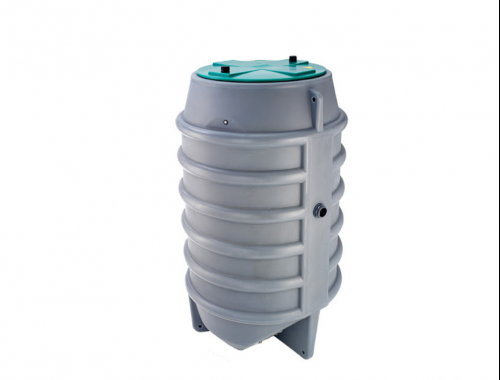

Description

The ideal solution for pumping clean water, rainwater, groundwater or wastewater to higher level sewers.

Application
  • Collection of dirty and waste water in sewers located at a higher level than the collection tank, or water that cannot be removed by gravity.
Characteristics

The standard station is equipped with the following components:

  • Polyethylene tank with a volume of 1200 or 1900 liters.
  • Threaded cover.
  • Cable glands for power cables and floats.
  • Supply pipe 75 mm (2” ½) or 63 mm (2”).
  • 2 hoists DN50 or DN65.
  • 2 ball check valves.
  • 2 shut-off valves.
  • 1 gasket DN160 for the inlet.
  • The standard tank does not include pumps, so it must be completed
  • The standard station is not equipped with pumps and must be supplemented with two pumps of the DOMO, DL, DLG, GLS 50/65 or GLV50/65 series, which must be ordered separately.

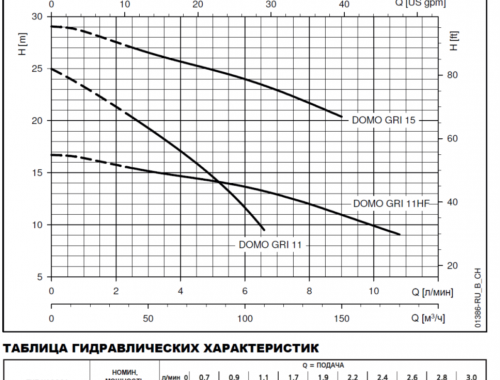

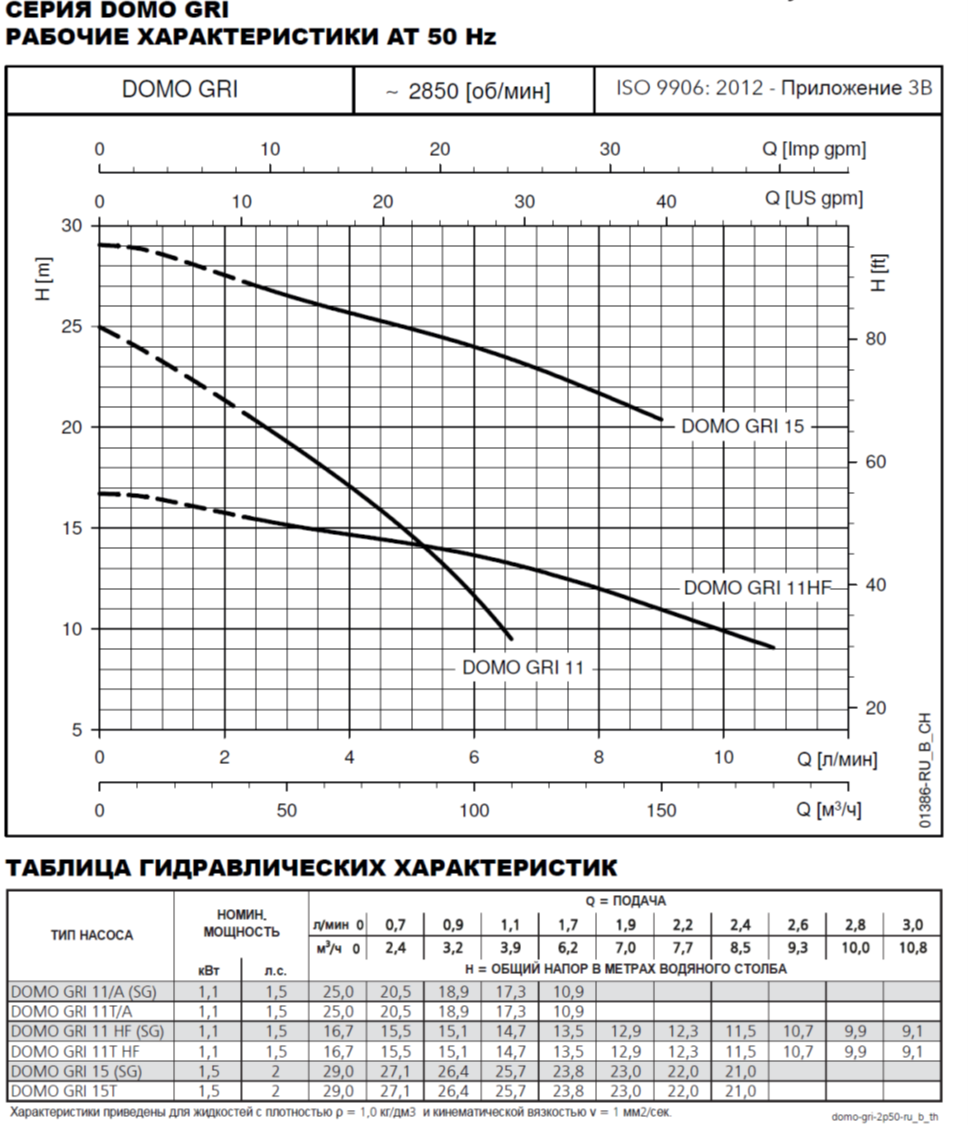

Description

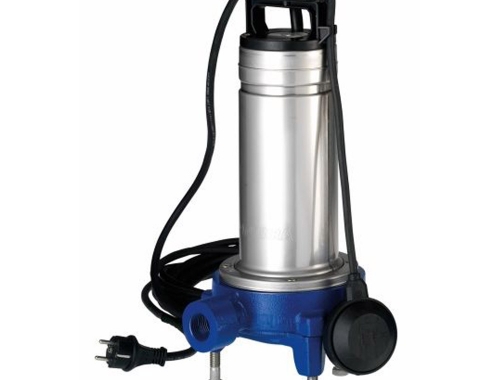

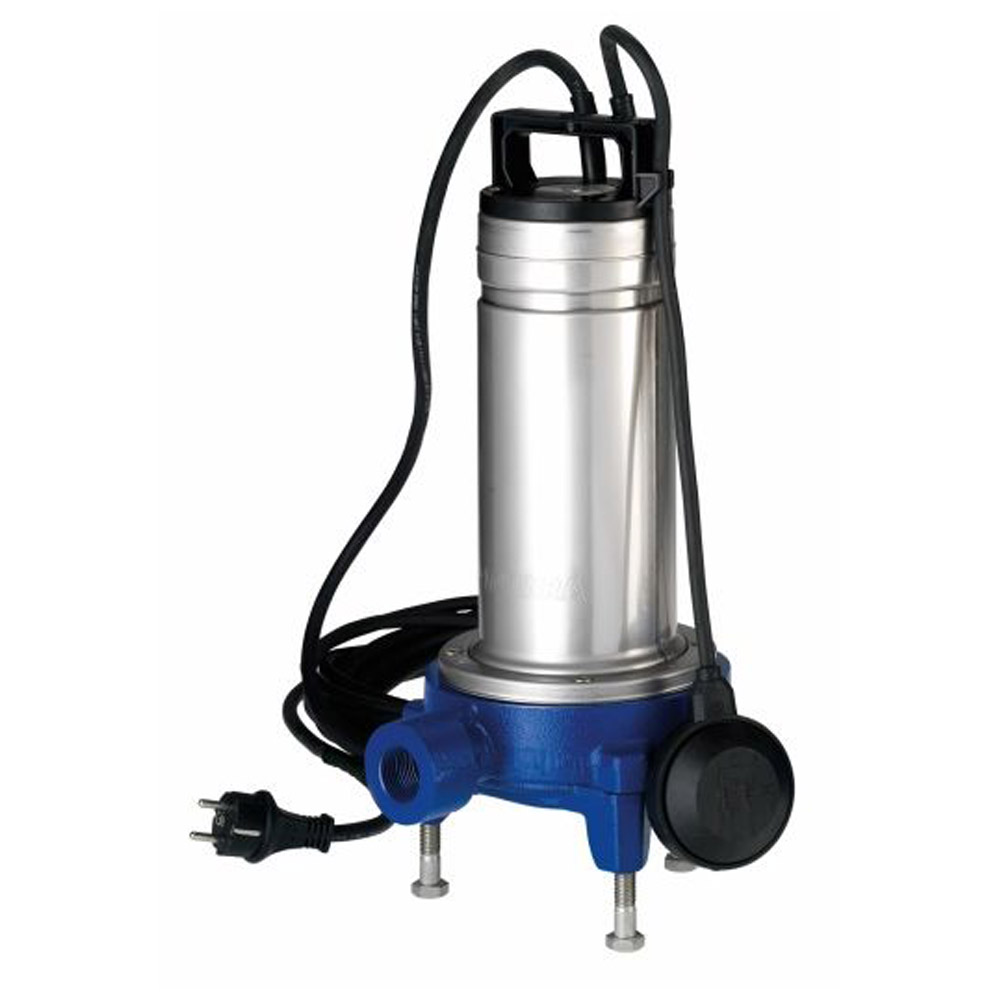

The new DOMO GRI has been developed for pumping domestic sewage, liquids containing particles or fibres, and sewage from residential buildings into the sewer system.

A cutter at the pump inlet breaks up particles in the effluent, which can freely pass through the impeller and pressure pipes.

The risk of clogging or blockage is greatly reduced, and the cutting system is very easy to set up.

Application
  • Waste water in residential buildings
  • Waste water in housing and communal services
  • Waste water in industry
Characteristics
  • Supply:up to 6.60 m³/h
  • Head: up to 25 m
  • Power supply: single-phase and three-phase 50 and 60 Hz
  • Power: from 1.10 kW to 1.10 kW
  • Fluid temperature: up to 35 °C
  • Maximum diving depth: 5 m

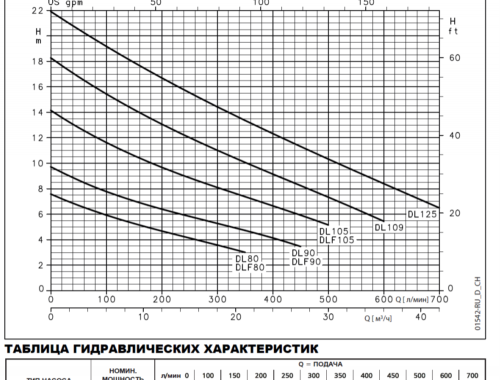

Description

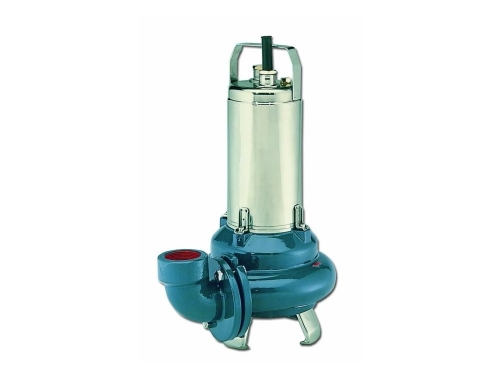

  • Pumps of the DL series, made of cast iron and stainless steel, are available with a single-channel or vortex impeller (DLV).
  • Pumps of this series are designed for pumping sewage and sewage water, operate in the range up to 20 m head and 100 m³/h capacity.
  • Rated power from 0.6 kW (0.8 hp ) to 4 kW (5.5 hp ). Pumping liquids with solid particles up to 65 mm in diameter.
Application
  • Wastewater in residential buildings
  • Wastewater in housing and communal services.
Characteristics
  • Feed: up to 42 m³/h
  • Head: up to 21 m
  • Power supply: single-phase and three-phase 50 and 60 Hz
  • Power: from 0.60 kW to 1.50 kW
  • Fluid temperature: up to 50 °C
  • Maximum diving depth: 5 m
  • Free passage: up to 50 mm

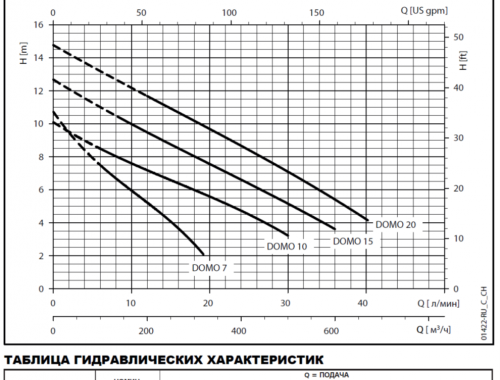

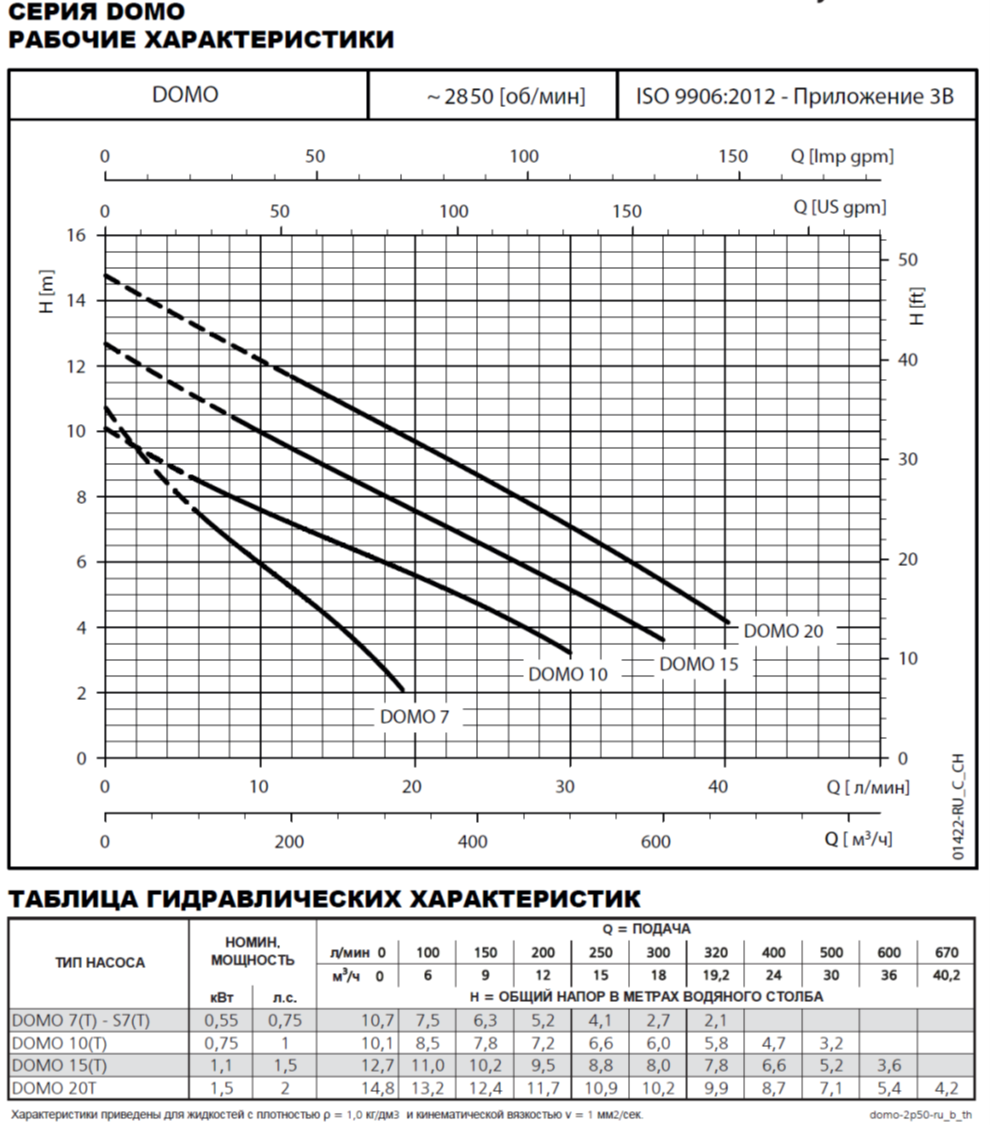

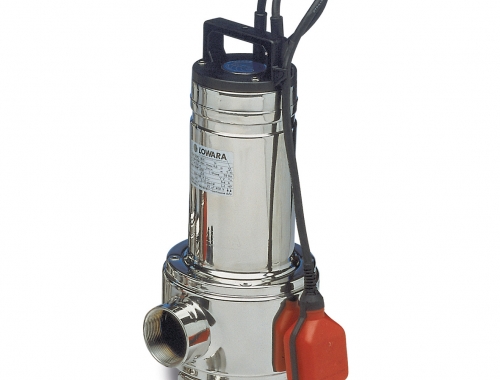

Description

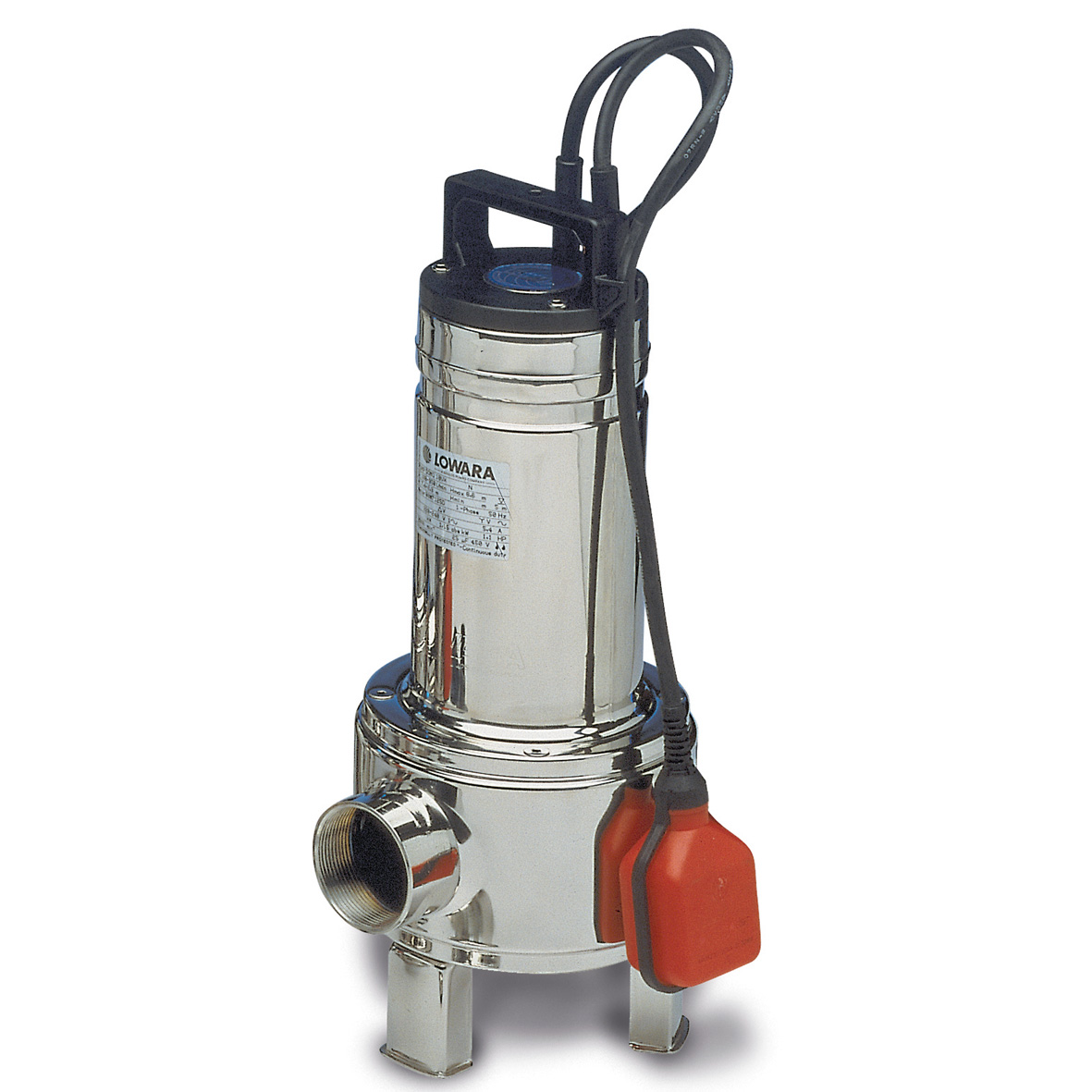

  • DOMO - stainless steel submersible pumps are available with double-channel or vortex impeller (DOMO VX).
  • Designed to handle liquids containing particles up to 50 mm in diameter (35 mm for DOMO 7 and DOMO 7VX).
  • Four basic models with rated power from 0.55 (0.75 hp ) to 1.5 kW (2 hp ).
  • Available with and without float switch
  • DRIVELUB sealing system
Application
  • Wastewater in residential buildings
Characteristics
  • Feed: up to 520 m³/h
  • Head: up to 545 m
  • Power supply: single-phase and three-phase 50 and 60 Hz
  • Power:from 0.55 kW to 1.50 kW
  • Free passage: up to 50 mm
  • Fluid temperature: up to 35 °C
  • Maximum diving depth: 5 m

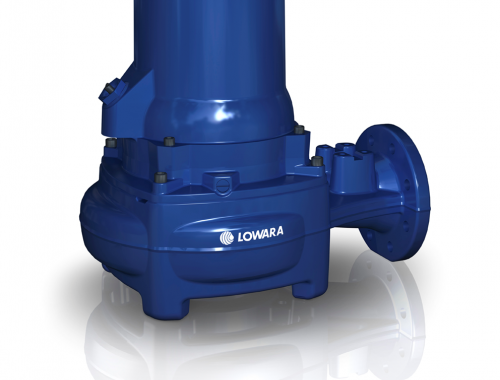

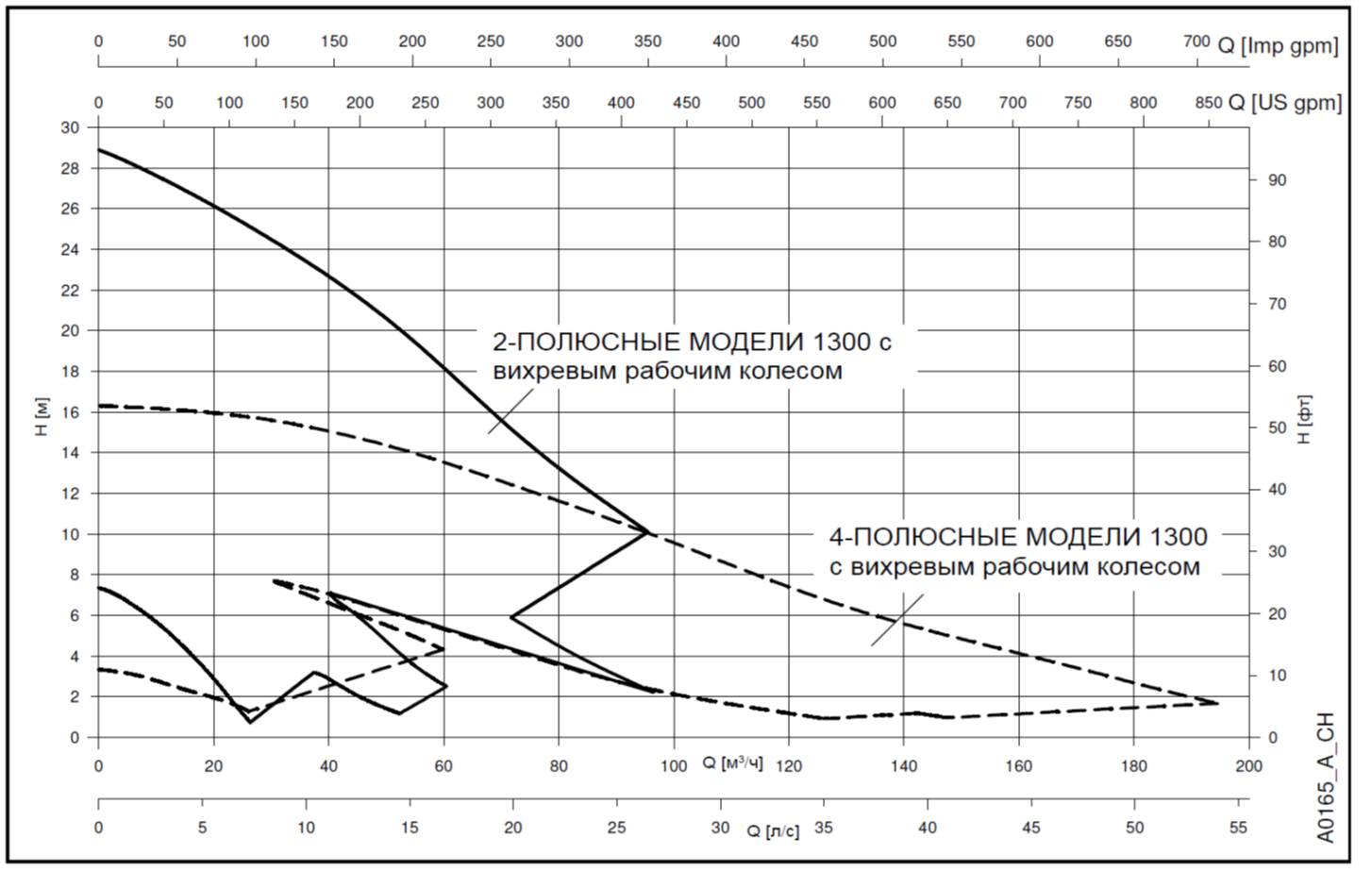

Description

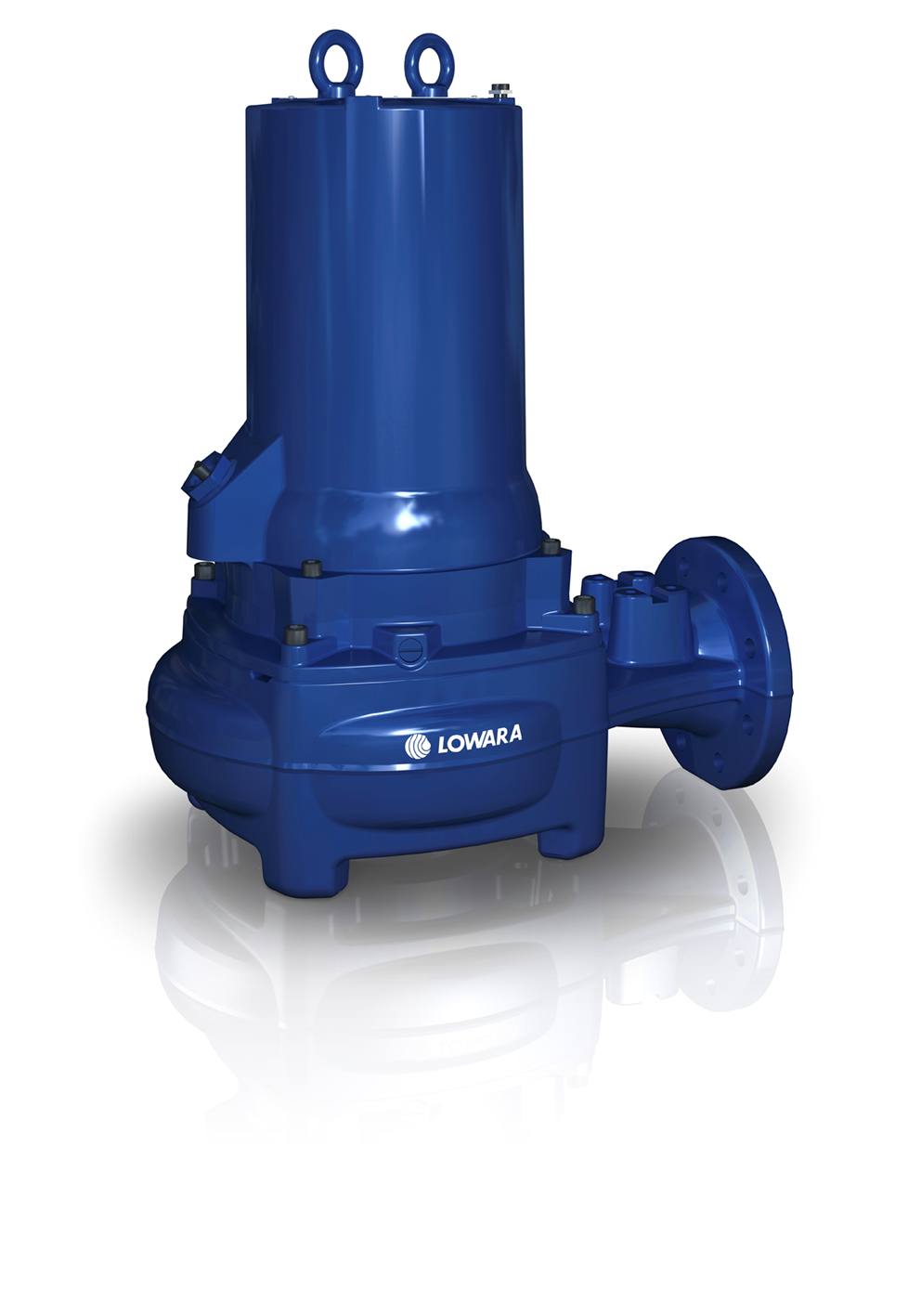

  • The new Lowara 1300-series submersible pump combines high quality workmanship with excellent performance
  • A standard range makes it easy to select the right pump with self-cleaning hydraulics that perform well even in tough conditions.
  • Series 1300 pumps are ideal for wastewater and utility applications.
  • The series includes 5 models of pumps with different types of wheels: self-cleaning hydraulics for pumping contaminated media with possible solids, and a vortex wheel when a large free passage is needed.

Application

  • Household sewer stations.
  • Pumping stations for pumping wastewater.
  • Pumping stations for storm water.
  • Drainage water.
  • Groundwater.
Characteristics
  • Feed: up to 1770 m³/h
  • Head: up to 74 m
  • Power supply: Single and three phase 50Hz
  • Power: from 0.75 kW to 50 kW
  • Temperature of pumped liquid: up to +40°C
  • Maximum diving depth: 20 m

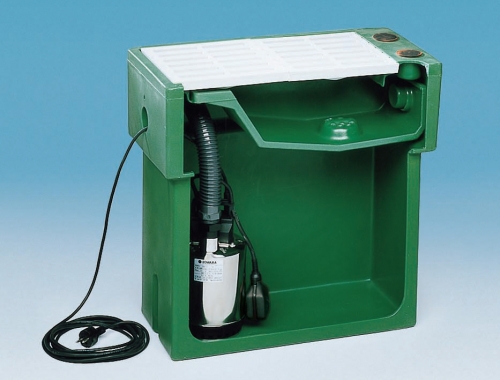

Description

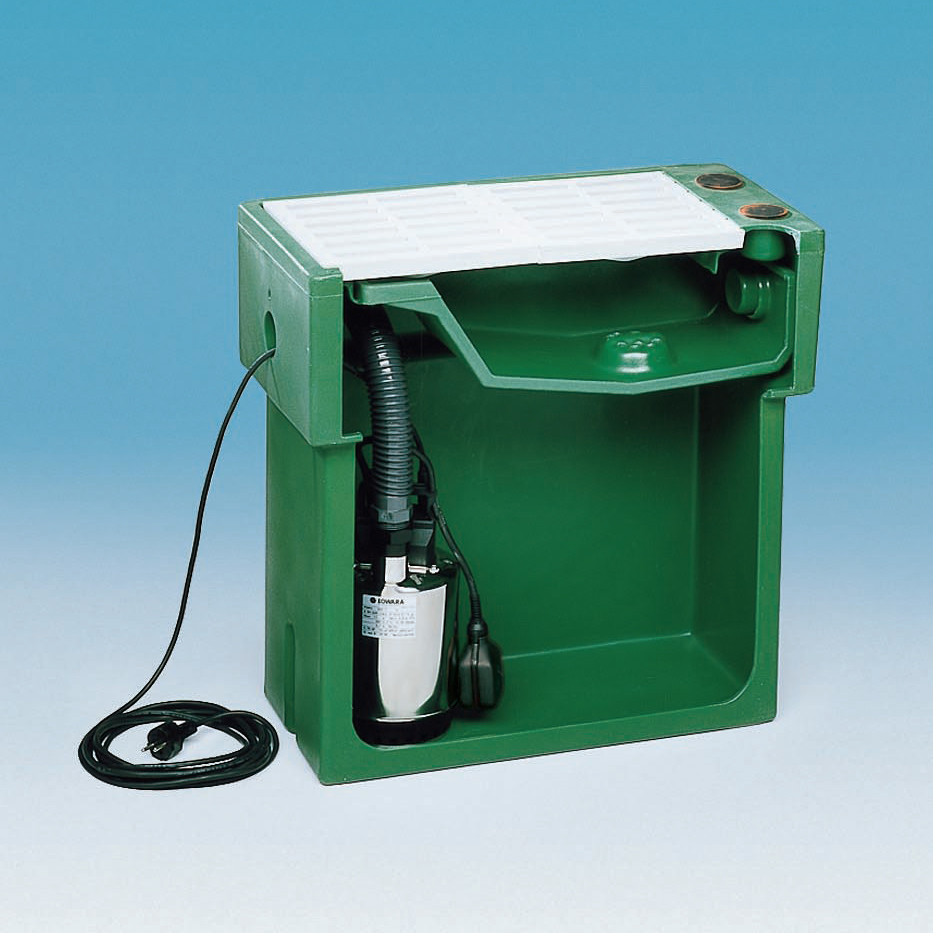

Minibox is a complete station designed for the removal of domestic wastewater, except for sewage, where natural gravity discharge is not possible.

For detailed technical information please refer to the DOC catalogue.

Application
  • Housing sector
Characteristics

The station is equipped with:

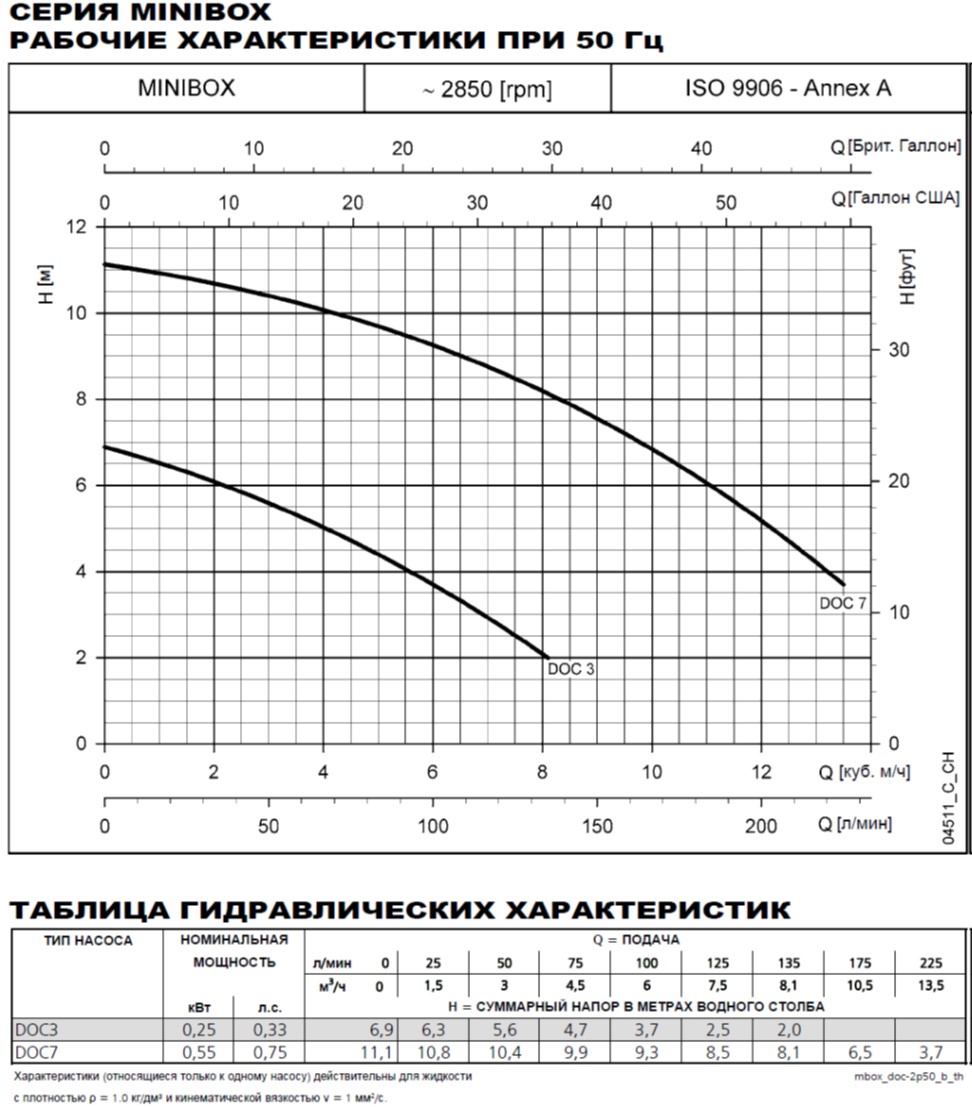

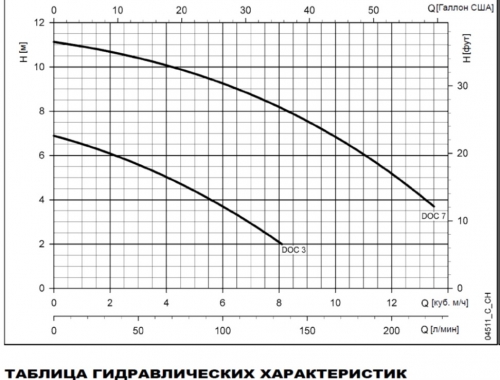

  • Submersible electric pump DOC, with a nominal flow rate up to 230 l/min and a head of 11 m.
  • Free passage diameter for suspended solids is 10 mm.
  • Equipped with a float switch for automatic operation. Tank made of high-density polyethylene, with a volume of 85 liters.
  • Flexible 1”1/4 connection tubing equipped with check valve for right or left connection.
  • One outlet for the power cable.
  • Three types of inlets for pipes with a diameter of 40 mm.
  • Lattices.
  • A tank filled with sand or gravel to filter out solids.
