Sleeves of a high pressure (HPR)

The hydraulic hose is a complete part of the hydraulic system that transmits hydraulic energy (not just pumping fluid), and deserves no less attention than all the hydraulic components that create, consume and control this energy.

Moreover, it is hydraulic hose assemblies that are usually most exposed to various extreme conditions, in which they must remain fully operational, ensure the convenience of the hydraulic system and the safety of operators.

Often, the importance of the hydraulic hose is overlooked and underestimated.

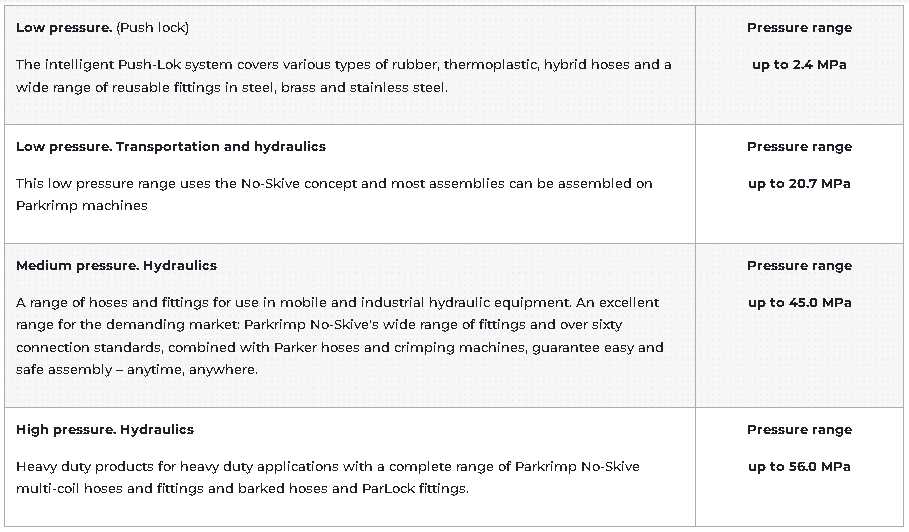

Here you can purchase HPH (high pressure hoses) of the following classifications manufactured by Parker:

  • Only virgin raw materials are used in the production of Parker high pressure hoses
  • Assembly of No-Skive high pressure hoses and Parker fittings with a sleeve pre-compressed to the nipple, does not require removal of the outer layer of the hose
  • Prevents hose failure caused by a mistake when removing a rubber layer or a mistake when reassembling it
  • The metal braid is mechanically protected during the assembly of the hose fittings by an external rubber coating, which prevents it from “fluffing”
  • No-Skive hose and fittings are designed so that the teeth of the coupling cut into the braid for a metal-to-metal grip without damaging the braid itself.
  • No-Skive hoses have tighter tolerances for alignment and overlayer

Also, our company can offer you a wide range of high-quality fittings and couplings for the assembly of high pressure hoses from well-known world manufacturers such as Parker, Cast SpA

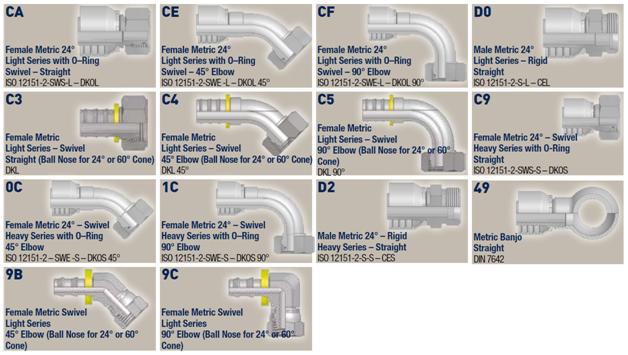

DIN - Metric DKLO, DKSO, DKL, DK
BSP - BSP, BSPT, BSPP pipe thread fittings

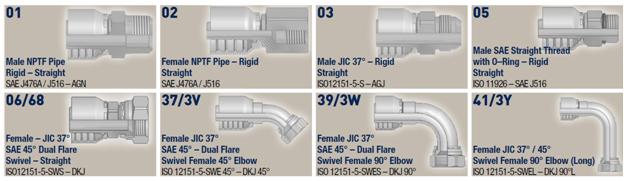

SAE fittings - NPT (American Standard Pipe Thread) fittings, JIC 37°, SAE 45°, JIC 74°, DKJ

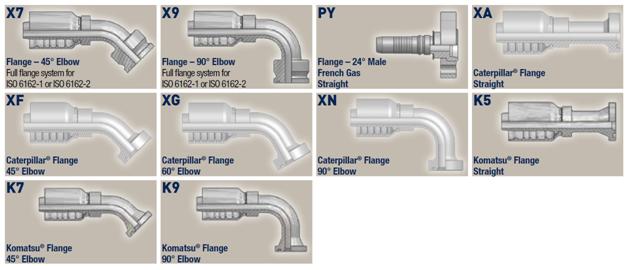

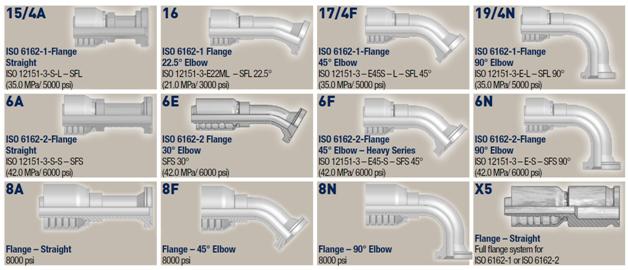

Flange, flange fittings - SAE 61, SAE 3000, SFL, SAE 62, SAE 6000, SFS, ISO 6162-1, ISO 6162-2, Caterpillar® Flange (SuperCAT), Komatsu® Flange, flange holders and o-rings.

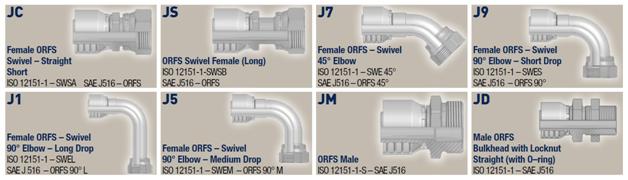

ORFS - flat rubber seal fittings
JIS - fittings for Japanese technology, equipment with metric and BSP threads

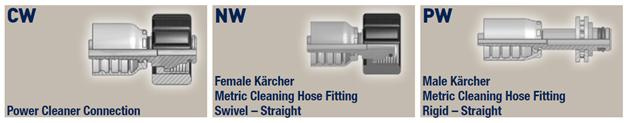

High Pressure Washer Fittings – Kärcher Washer Fittings and Repair Hose Connectors

Fittings and couplings can also be made from various materials such as stainless steel, carbon steel, brass and others.

Catalog of HPH (high pressure hoses) and fittings manufactured by Parker
Catalog Number: 4400RU
Edition 2014 - Russian language
Catalog of HPH (high pressure hoses) and fittings manufactured by Parker
Catalog Number: 4400UK
Edition 2019 - English
Catalog of pipe connections manufactured by Cast (Kast) SpA
Catalog Number: 2013.10
Edition 2013 - English
