PUMP EQUIPMENT

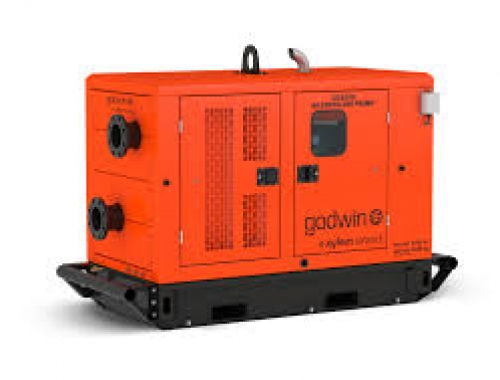

Description

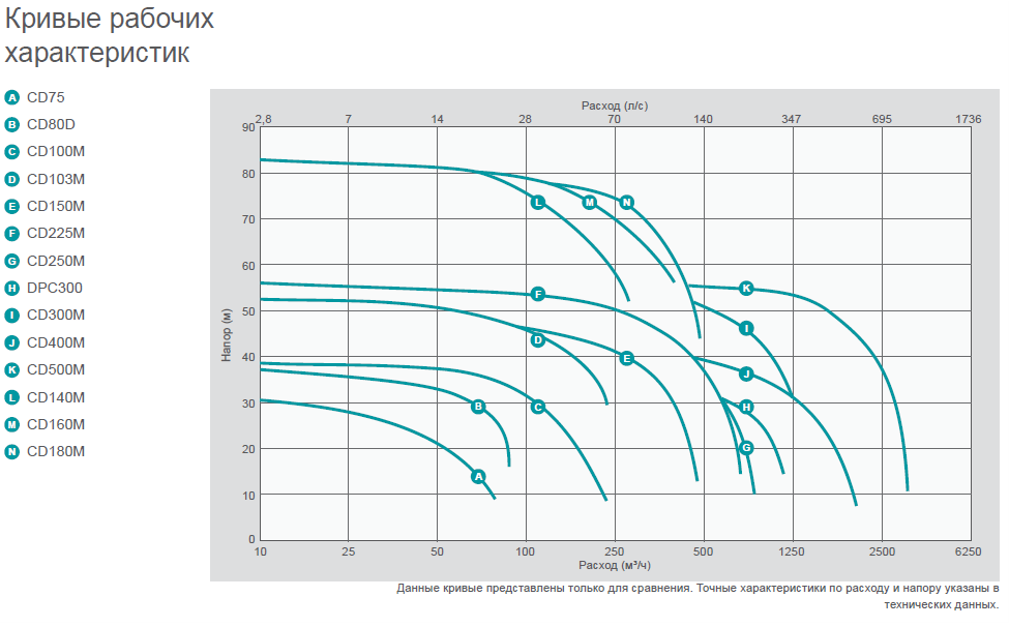

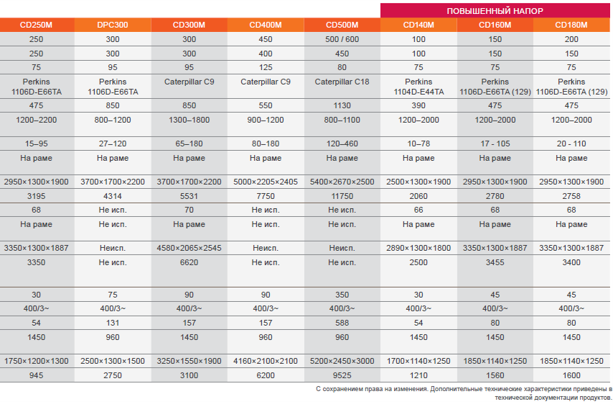

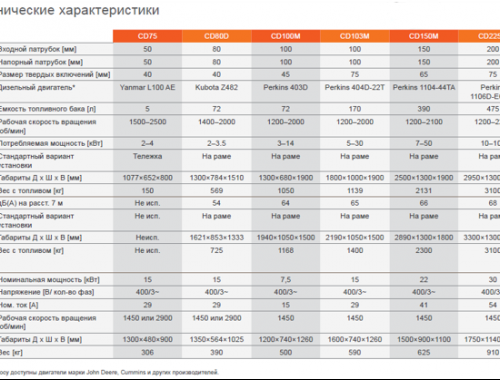

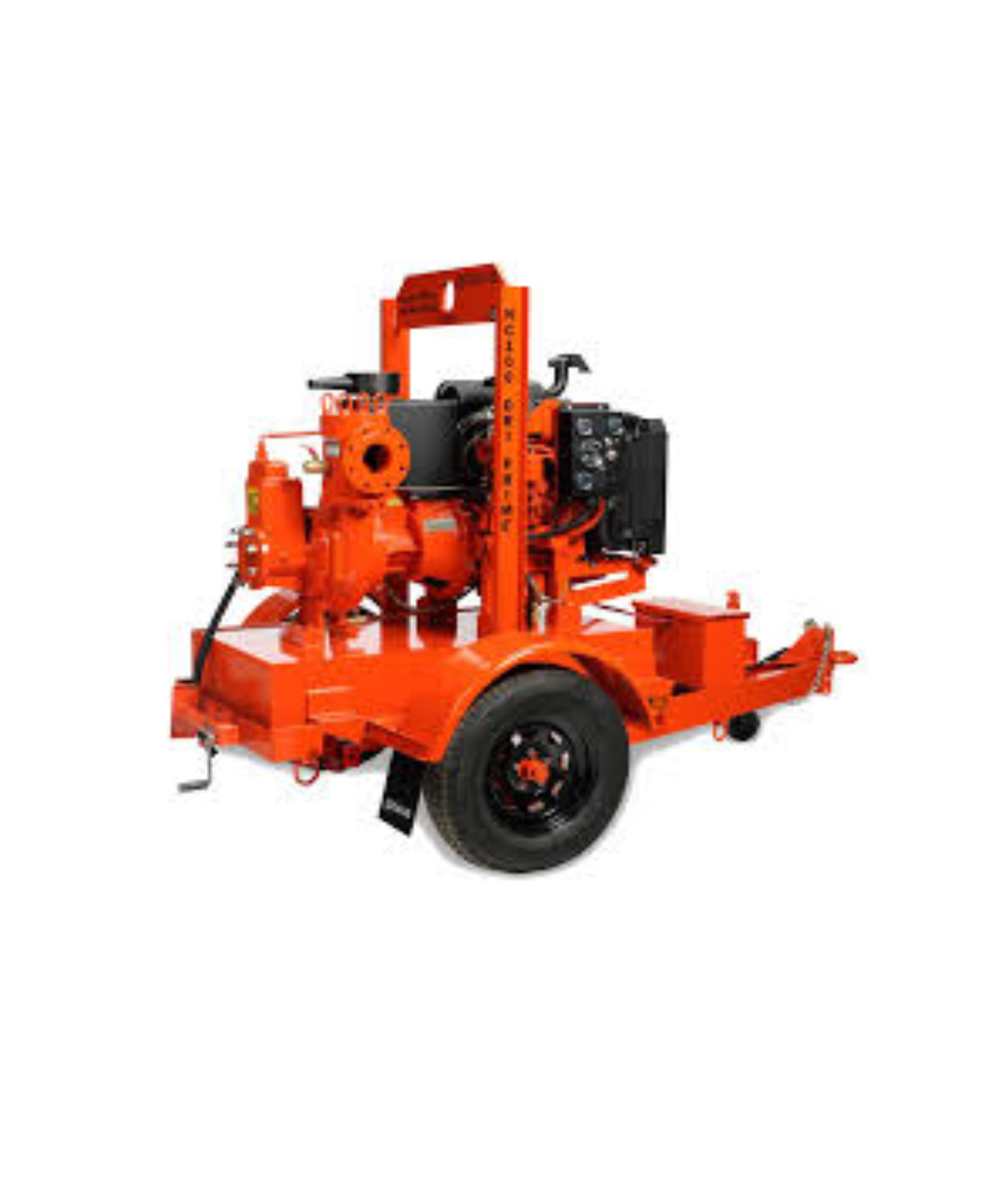

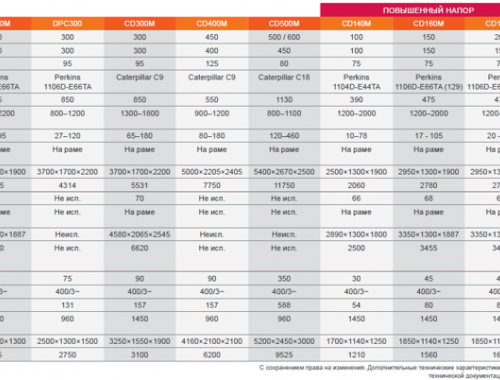

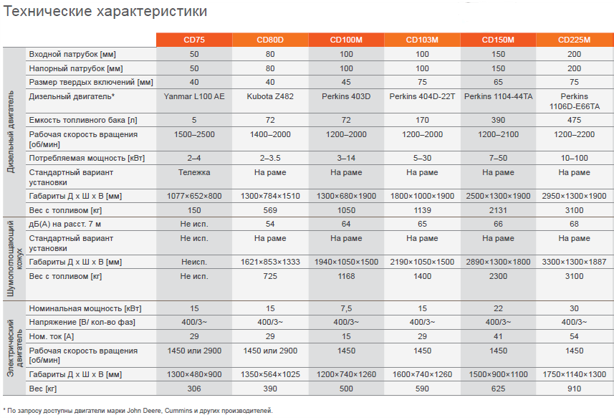

• Self-priming dirty water pumps with Dri -Prime system
• Eleven basic models from 15kW ( 20hp ) up to 470kW ( 639hp ) rated power .
• Weight of pumps from 675 kg. up to 9 200 kg.

Application

• Mining and quarrying.
• Construction.
• Urban systems.

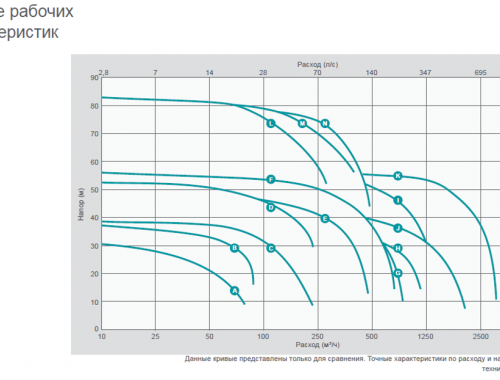

Characteristics

• Supply: up to 333.3 l/s ( 1,200 m3/h).
• Head: up to 190 m
• Drive type: Diesel or electric motor 50/60 Hz
• Power: from 15 kW to 47 0 kW
• Fluid temperature: up to 40 °C
• Maximum suction height: up to 6m
• Free passage: up to 6 5mm.
• Type of hydraulics: B (Wear-resistant impeller)

Description

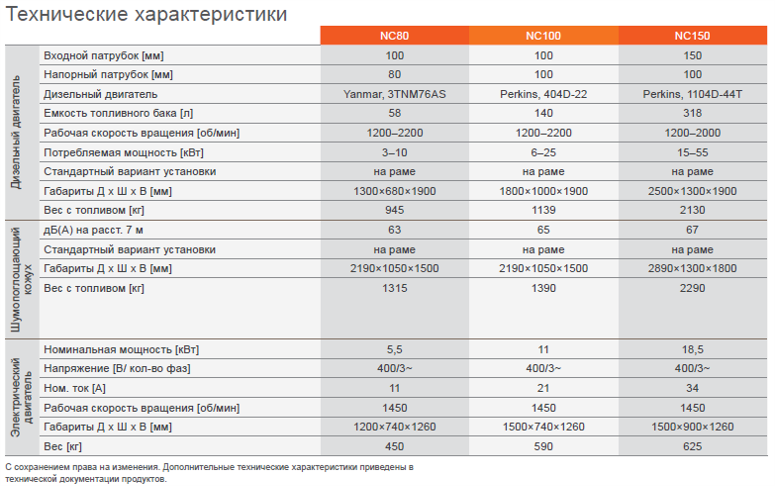

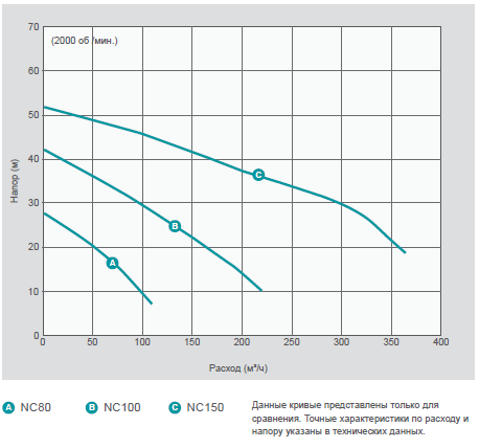

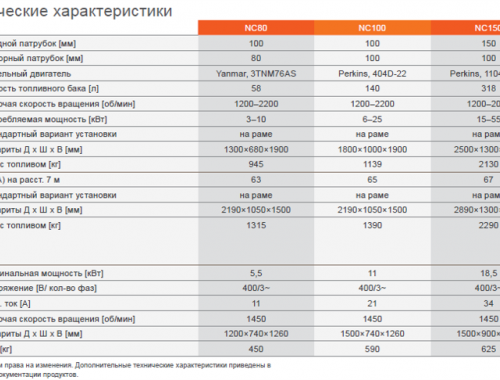

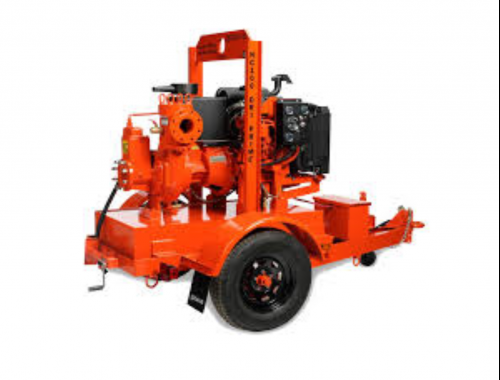

• Self-priming dirty /sewage water pumps with Dri -Prime system and Flygt N self-cleaning hydraulics
• Three basic models from 3 kW ( 4 hp ) up to 55 kW ( 75 hp ) rated power.
• Weight of pumps from 1315 kg. d about 2290 kg.

Application

• Mining and quarrying.
• Construction.
• Urban systems.

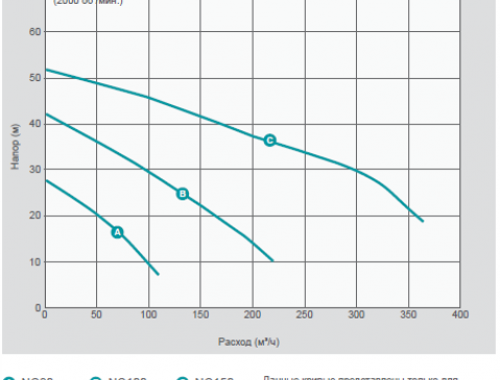

Characteristics

• Supply: up to 333.3 l/s ( 1,200 m3/h).
• Head: up to 52 m
• Drive type: Diesel or electric motor 50/60 Hz
• Power: from 3 kW to 55 kW
• Fluid temperature: up to 40 °C
• Maximum suction height: up to 6m
• Type of hydraulics: N (Self-cleaning impellers)

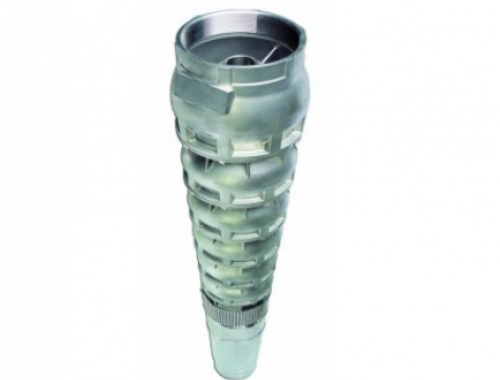

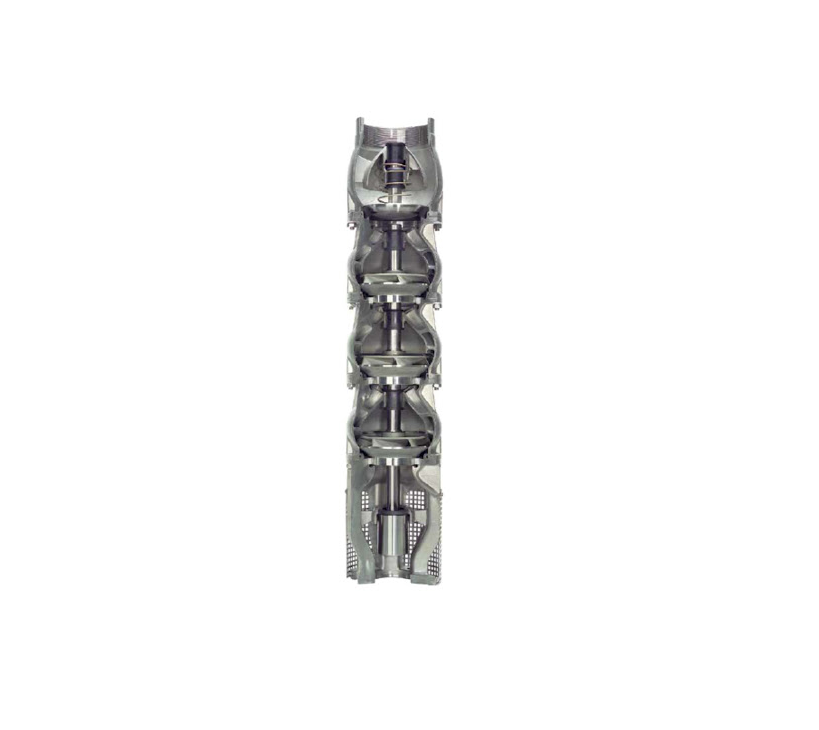

Description

Robust and lightweight, easy to maintain and resistant to corrosion in non-aggressive environments

• Impellers and diffusers are precision-cast stainless steel
• Discharge port is precision-cast stainless steel
• Integrated non-return valve is made of stainless steel
• Suction chamber support is precision-cast Stainless steel investment casting
• Stainless steel shaft
• NEMA motor connections

Application

• Water supply from wells
• Increasing pressure and water supply in industrial and domestic systems
• Water supply from reservoirs and reservoirs
• Washing and fire extinguishing systems
• Lowering of the groundwater level
• Irrigation systems
• Pumping water from mines.

Characteristics

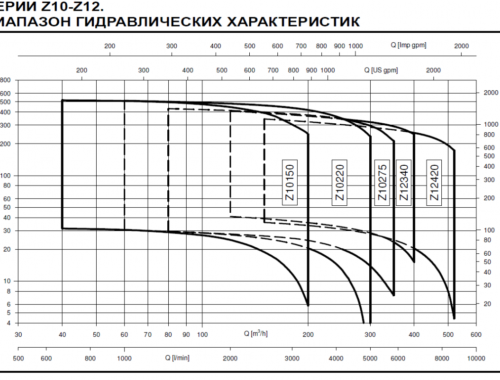

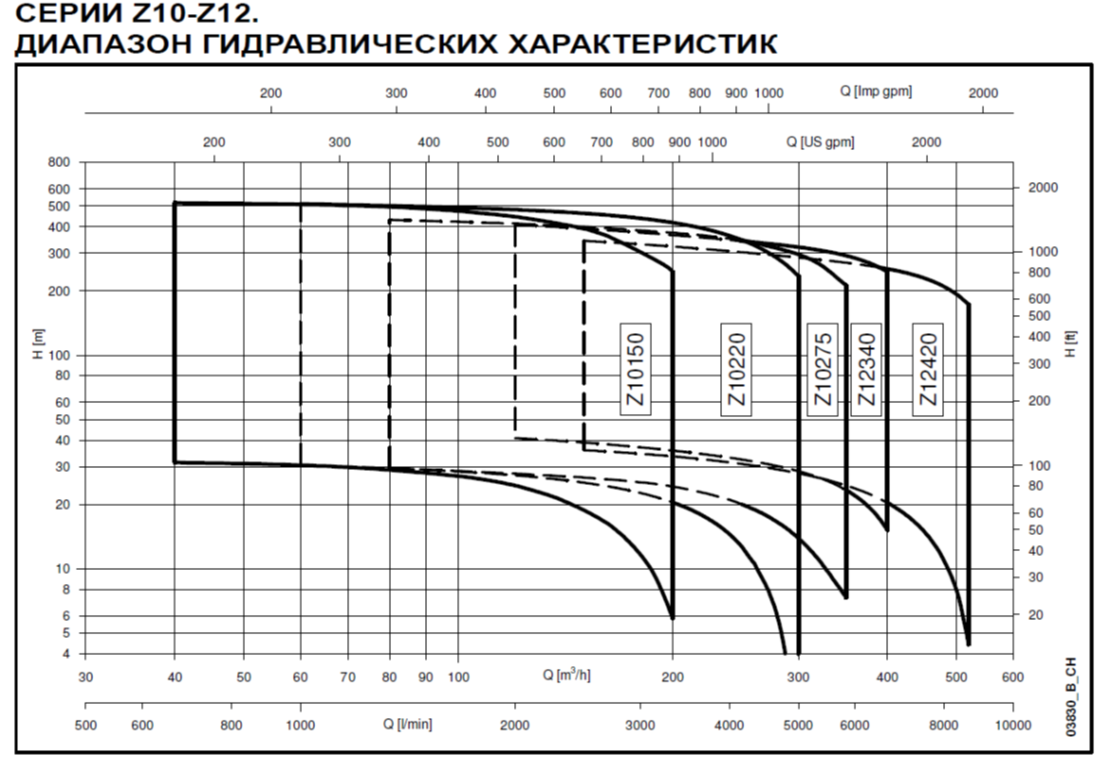

• Feed: up to 520 m³/h
• Head: up to 545 m
• Electrical connection: three-phase 50 Hz
• Power: from 4 kW to 350 kW
• Maximum working pressure 10 bar
• Fluid temperature: up to 60 °C
• Maximum diving depth: 350 m

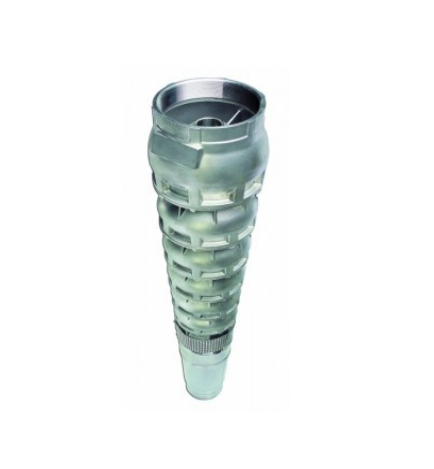

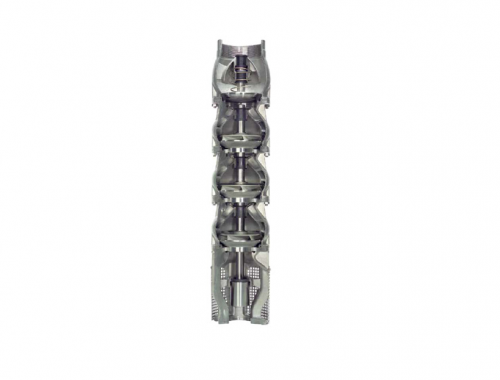

Description

Discharge port and motor flange made of die-cast stainless steel

Discharge port, fitted with cable fixing hole

Integrated stainless steel non-return valve

Stainless steel impellers and diffusers

Stainless steel shaft, well protected by stainless steel housing

Replaceable coupling

Application

• Water supply from wells
• Increasing pressure and water supply in industrial and domestic systems
• Water supply from reservoirs and reservoirs
• Washing and fire extinguishing systems
• Groundwater level control
• Irrigation systems
• Pumping water from mines.

Characteristics

• Feed: up to 78 m³/h
• Head: up to 700 m
• Power supply:three phase 50Hz
• Power: from 0.55 kW to 55 kW
• Maximum working pressure 70 bar
• Fluid temperature: up to 60 °C
• Maximum diving depth: 350 m

Description

Robust and lightweight, easy to maintain and resistant to corrosion in non-aggressive environments

• Impellers and diffusers are precision-cast stainless steel
• Discharge port is precision-cast stainless steel
• Integrated non-return valve is made of stainless steel
• Suction chamber support is precision-cast Stainless steel investment casting
• Stainless steel shaft
• NEMA motor connections

Application

• Water supply from wells
• Increasing pressure and water supply in industrial and domestic systems
• Water supply from reservoirs and reservoirs
• Washing and fire extinguishing systems
• Lowering of the groundwater level
• Irrigation systems
• Pumping water from mines.

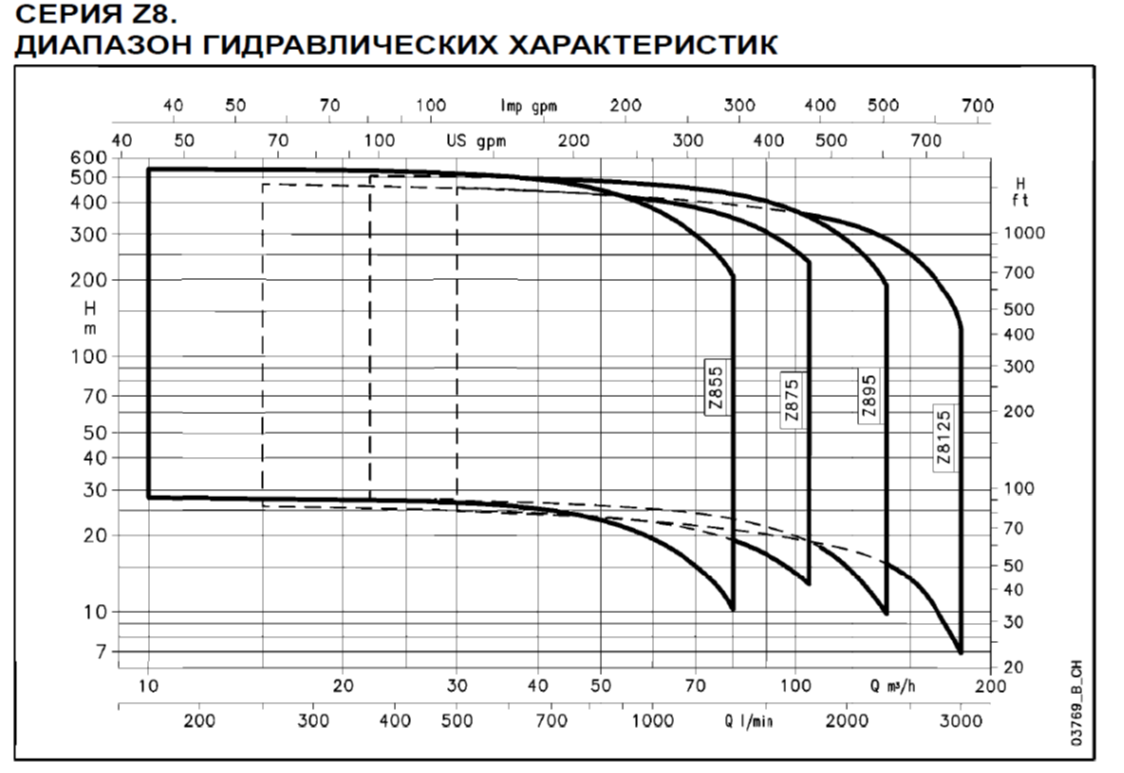

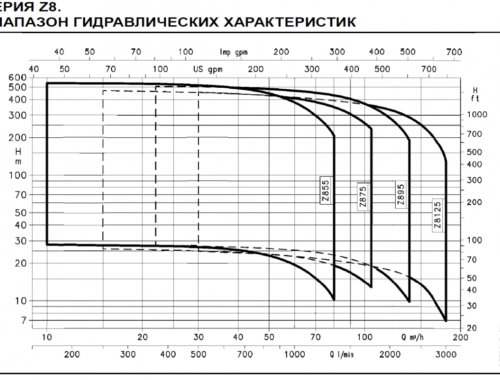

Characteristics

• Feed: up to 180 m³/h
• Head: up to 550 m
• Power supply:three-phase 50 and 60 Hz
• Power: from 150 kW to 5.50 kW
• Maximum working pressure 55 bar
• Fluid temperature: up to 30 °C
• Maximum diving depth: 350 m
