PUMP EQUIPMENT

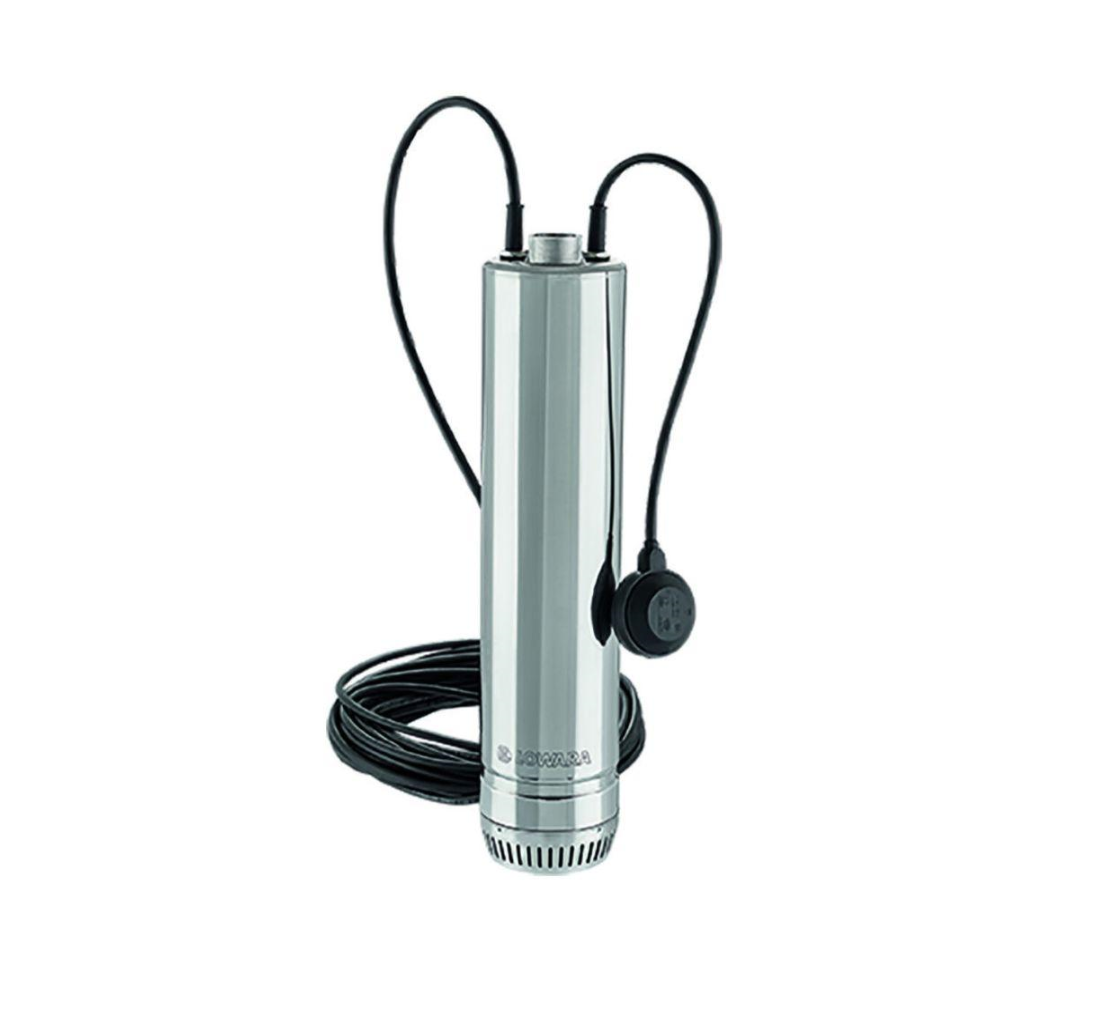

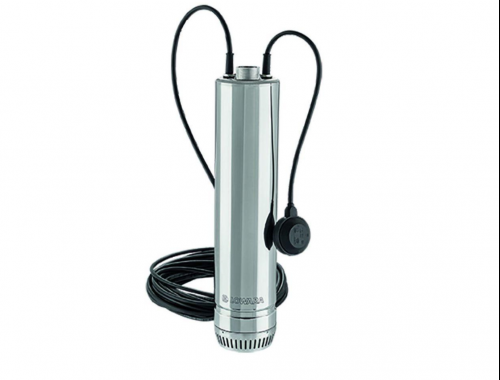

Description

• Precision cast stainless steel pressure head.
• Power cable with plug connection and float switch.
• Drinking water version.
• Silent operation.
• Discharge port is offset from the axis, the lifting eye provides a vertical position.
• Impellers resistant to sand wear.

Design characteristics

• The hydraulic part is located under the electric motor, which is cooled by the pumped liquid.
• Radial centrifugal impellers made of technopolymer.
• Diffusers, outer casing, motor housing, filter and shaft projection are made of stainless steel.
• The pressure head is precision-cast stainless steel.
• Easy installation and maintenance thanks to plug-in power cable and float switch.
• Drinking water version available on request
• The electric motor is protected by a double seal system with an oil chamber.

Application

• Water supply from cisterns or reservoirs of water from 15.24 cm (6 in.) boreholes, reservoirs and water channels .
• Irrigation systems.
• Increasing pressure with a pump installed directly in the tank or well
• Drainage of rain water.
• Car wash systems.
• Increasing pressure on ships.
• Air purification/humidification systems.
• Filtration systems.
• Water recycling systems.

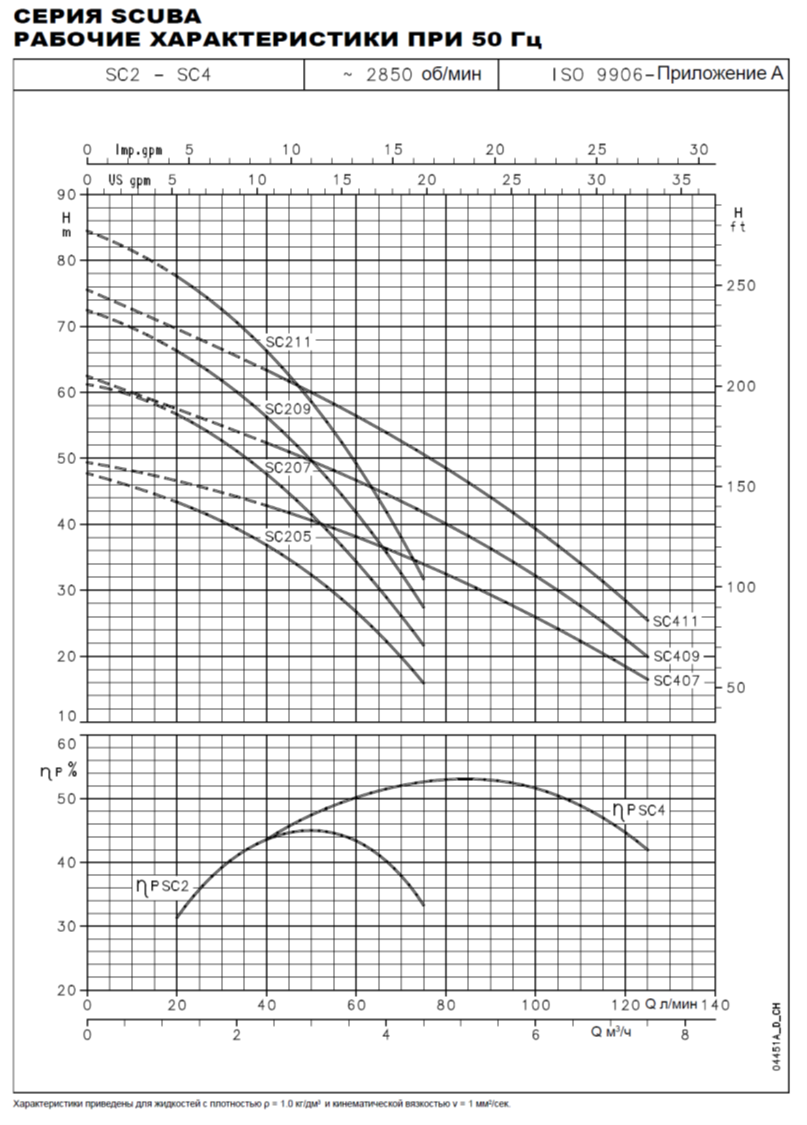

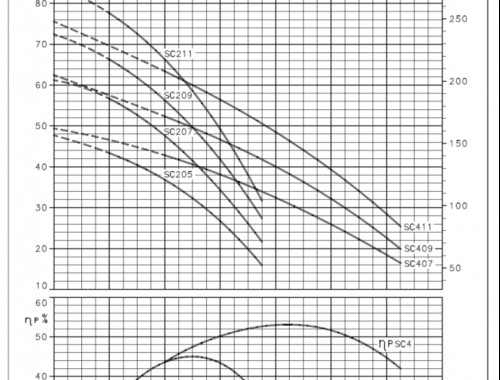

Characteristics

• Feed: up to 12 m³/h
• Head: up to 100 m
• Power supply: single-phase and three-phase 50 Hz
• Power: from 0.55 kW to 2.2 kW
• Maximum diving depth: 20 m
• Fluid temperature: up to 40 °C
• Free passage: up to 2.5 mm

Terms of use

• Temperature of the pumped liquid: - standard version: 0 to 40°C; - drinking water version: 0 to 23°C
• Vertical/horizontal installation.
• Maximum diving depth: 17 m.
• Maximum allowable amount of suspended sand: 25 g/m3
• Maximum chloride content at 20°C: 200 ppm
• Size of solid particles - 1SC: up to 1 mm; - 3SC, 5SC, 8SC: up to 2 mm.

Description

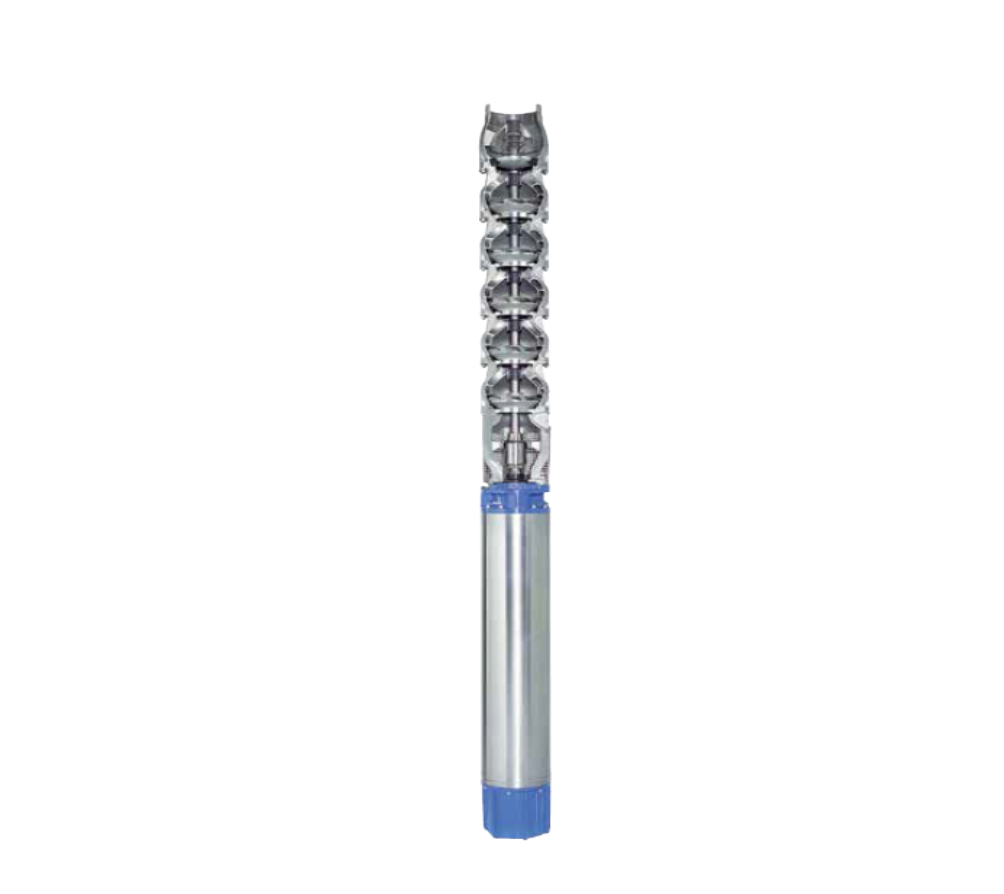

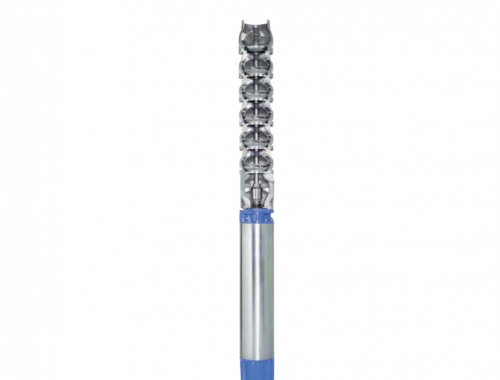

Downhole pumps with diagonal hydraulics for wells 8″ (10) ”

• Submersible borehole pumps in austenitic stainless steel, cast construction.
• Enclosed cast design impellers in austenitic stainless steel.
• Dynamic wear rings to reduce internal losses and reduce wear

Application

• Clean water in housing and communal services
• Heating, ventilation, air conditioning in housing and communal services
• Fire extinguishing in housing and communal services
• Clean water in industry
• Industrial water treatment
• Irrigation in agriculture
• Golf/Lawns - Irrigation
• Vodokanals, municipal needs - Pure water
• Vodokanals, municipal needs - Water treatment

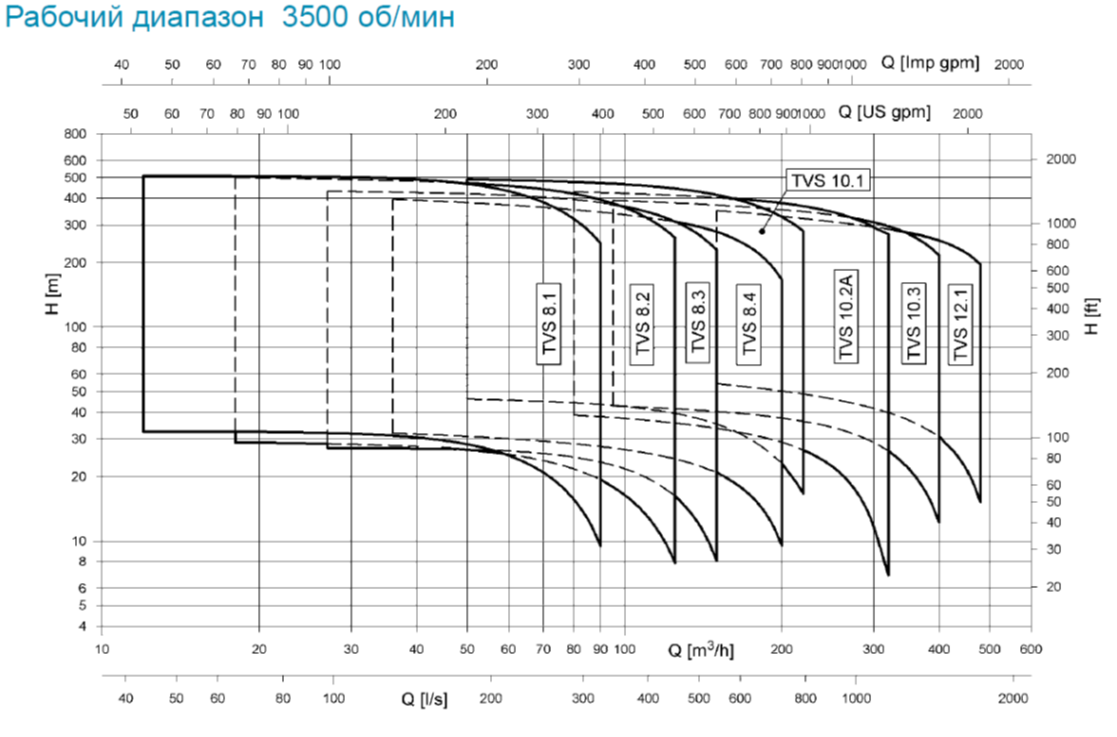

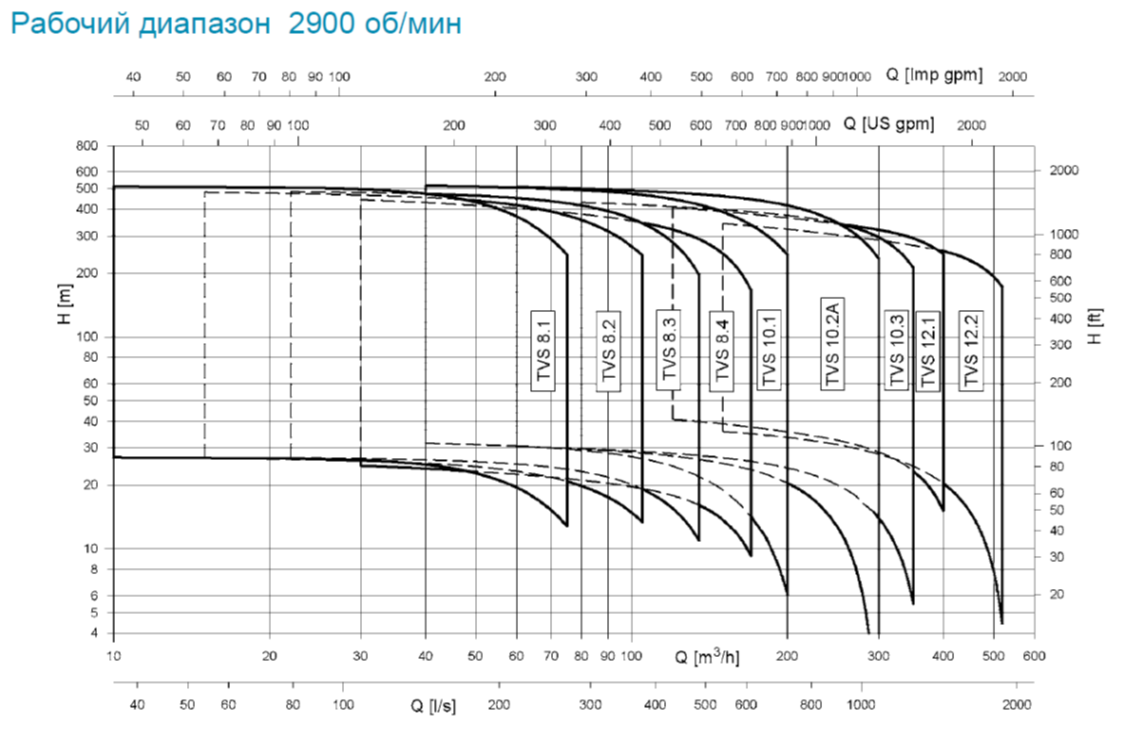

Characteristics

• Feed: up to 170 m³/h
• Head: up to 500 m
• Power supply: three-phase 50 and 60 Hz
• Maximum working pressure 55 bar
• Fluid temperature: up to 30 °C

Pumped liquids

• Drinking water
• Natural water
• Sea water (requires WW Duplex version)
• Thermal water m Mineral water
• Mine water
• Sand content max. 100 g/m³

Description

Robust and lightweight, easy to maintain and resistant to corrosion in non-aggressive environments

• Impellers and diffusers are precision-cast stainless steel
• Discharge port is precision-cast stainless steel
• Integrated non-return valve is made of stainless steel
• Suction chamber support is precision-cast Stainless steel investment casting
• Stainless steel shaft
• NEMA motor connections

Application

• Water supply from wells
• Increasing pressure and water supply in industrial and domestic systems
• Water supply from reservoirs and reservoirs
• Washing and fire extinguishing systems
• Lowering of the groundwater level
• Irrigation systems
• Pumping water from mines.

Characteristics

• Feed: up to 520 m³/h
• Head: up to 545 m
• Electrical connection: three-phase 50 Hz
• Power: from 4 kW to 350 kW
• Maximum working pressure 10 bar
• Fluid temperature: up to 60 °C
• Maximum diving depth: 350 m

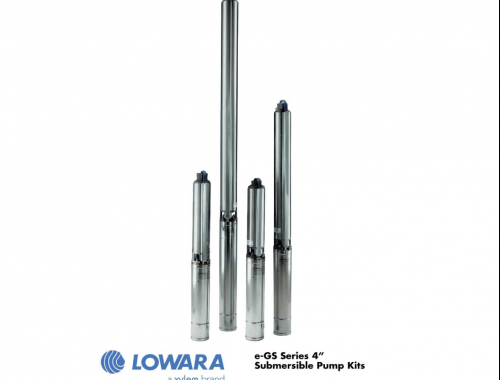

Description

Discharge port and motor flange made of die-cast stainless steel

Discharge port, fitted with cable fixing hole

Integrated stainless steel non-return valve

Stainless steel impellers and diffusers

Stainless steel shaft, well protected by stainless steel housing

Replaceable coupling

Application

• Water supply from wells
• Increasing pressure and water supply in industrial and domestic systems
• Water supply from reservoirs and reservoirs
• Washing and fire extinguishing systems
• Groundwater level control
• Irrigation systems
• Pumping water from mines.

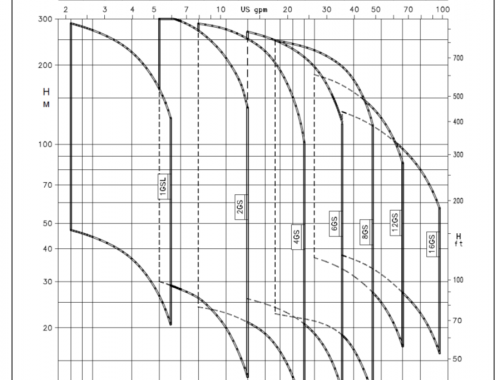

Characteristics

• Feed: up to 78 m³/h
• Head: up to 700 m
• Power supply:three phase 50Hz
• Power: from 0.55 kW to 55 kW
• Maximum working pressure 70 bar
• Fluid temperature: up to 60 °C
• Maximum diving depth: 350 m

Description

Robust and lightweight, easy to maintain and resistant to corrosion in non-aggressive environments

• Impellers and diffusers are precision-cast stainless steel
• Discharge port is precision-cast stainless steel
• Integrated non-return valve is made of stainless steel
• Suction chamber support is precision-cast Stainless steel investment casting
• Stainless steel shaft
• NEMA motor connections

Application

• Water supply from wells
• Increasing pressure and water supply in industrial and domestic systems
• Water supply from reservoirs and reservoirs
• Washing and fire extinguishing systems
• Lowering of the groundwater level
• Irrigation systems
• Pumping water from mines.

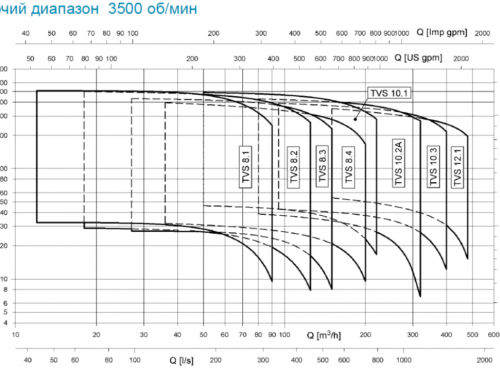

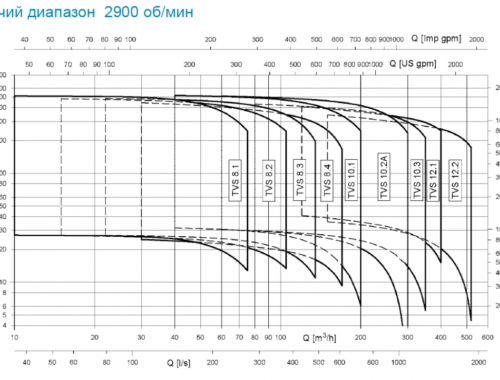

Characteristics

• Feed: up to 180 m³/h
• Head: up to 550 m
• Power supply:three-phase 50 and 60 Hz
• Power: from 150 kW to 5.50 kW
• Maximum working pressure 55 bar
• Fluid temperature: up to 30 °C
• Maximum diving depth: 350 m
